Komatsu PC200-8 Hydraulic Excavator Dimensions

22 Jan, 2019

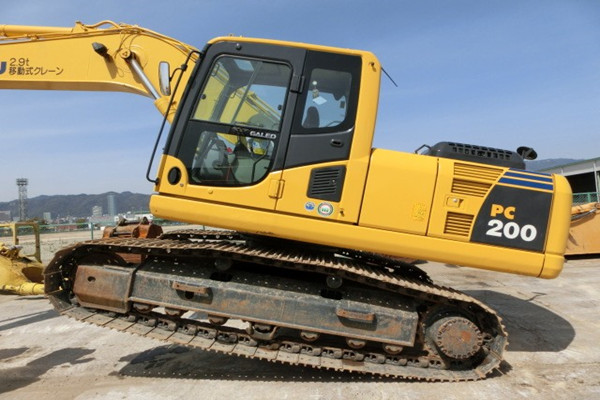

Komatsu PC200-8 Hydraulic Excavator



Specifications
Engine
Number of Cylinders 6
Engine Make 2238
Engine Model SAA6D107E-1
Gross Power 155 hp
Net Power 148 hp
Power Measured @ 2000 rpm
Displacement 408 cu in
Aspiration Turbocharged and aftercooled
Operational
Operating Weight 44114.5 lb
Fuel Capacity 105.7 gal
Cooling System Fluid Capacity 5.4 gal
Hydraulic System Fluid Capacity 35.7 gal
Engine Oil Capacity 6.1 gal
Swing Drive Fluid Capacity 1.7 gal
Operating Voltage 24 V
Alternator Supplied Amperage 50 amps
Hydraulic System Relief Valve Pressure 5400 psi
Hydraulic Pump Flow Capacity 116 gal/min
Swing Mechanism
Swing Speed 12.4 rpm
Swing Torque 49907 lb ft
Undercarriage
Number of Shoes per Side 45
Shoe Size 31.5 in
Number of Carrier Rollers per Side 2
Number of Track Rollers per Side 7
Max Travel Speed 3.4 mph
Drawbar Pull 40120 lb
Track Gauge 7.3 ft in
Buckets
Reference Bucket Capacity 1.4 yd3
Minimum Bucket Capacity 0.7 yd3
Maximum Bucket Capacity 1.6 yd3
Boom/Stick Option (HEX) 1
Boom/Stick Option (HEX) 1 None / 7.92ft 2410mm
Shipping Height of Unit 10.5 ft in
Shipping Length of Unit 18.8 ft in
Max Digging Depth 20 ft in
Max Reach Along Ground 30.2 ft in
Max Cutting Height 32.2 ft in
Max Loading Height 22.7 ft in
Max Vertical Wall Digging Depth 17.9 ft in
Boom/Stick Option (HEX) 2
Boom/Stick Option (HEX) 2 None / 9.58ft 2925mm
Shipping Height of Unit 10 ft in
Shipping Length of Unit 15.8 ft in
Max Digging Depth 21.8 ft in
Max Reach Along Ground 31.9 ft in
Max Cutting Height 32.9 ft in
Max Loading Height 23.4 ft in
Max Vertical Wall Digging Depth 19.6 ft in
Dimensions
Width to Outside of Tracks 9.9 ft in
Height to Top of Cab 10 ft in
Ground Clearance 1.5 ft in
Removal Counterweight Clearance 3.6 ft in
Tail Swing Radius 9 ft in
Length of Track on Ground 10.8 ft in
