Dozer Track Chains 3M1580 Bulldozer Track Shoes D4D 4K7080 Track Link Assy CR1739

Item NO.:
3M1580/4K7080
Product Orgin:
Fujian,China
Shipping Port:
Xiamen Sea Port
Payment:
T/T, L/C, DP, West Union
Color:
Black/Yellow
Model:
Caterpillar
Material:
35MnB
Colors:
Black/Yellow
Technique:
Forging&Casting
Hardness:
HRC52-58,Depth:8mm-12mm
Warranty time:
2000hours
Finish:
Smooth
Packing:
Fumigate seaworthy packing
Weight:
282.8kg

Contact Now

Product Details

PRODUCT DETAIL:

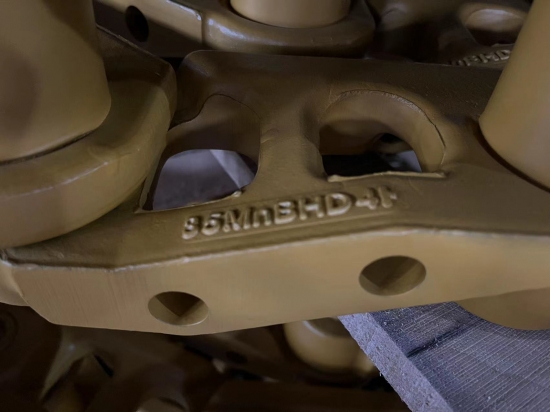

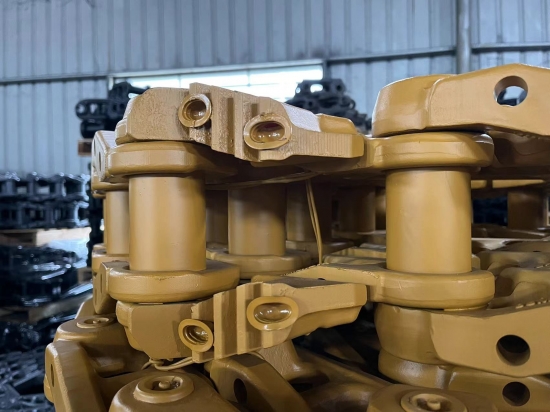

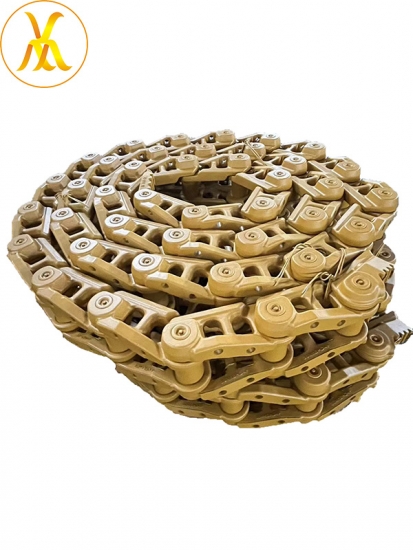

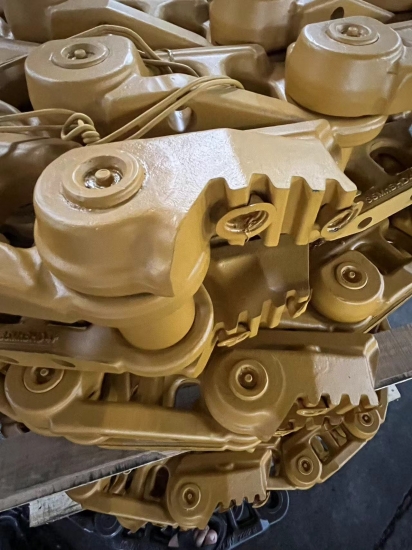

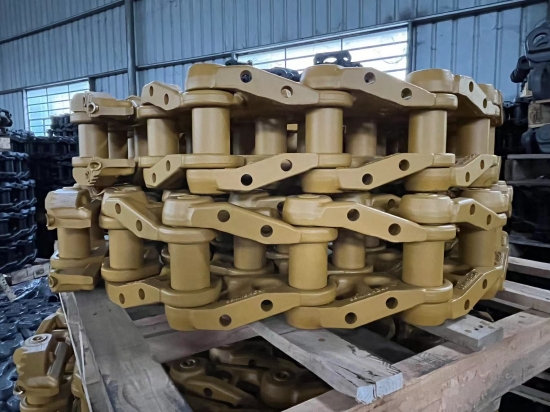

The track chain assembly, which is also called track link assy, is one part of undercarriage parts for crawler heavy equipments such as excavator, bulldozer, crane, drilling machine etc.

The track chain assembly is made of idler shell, shaft, brackets, Bi-metallic Bearings and seal group. It is made by casting or forging, machining, heat treatment, assembly, painting etc.

Made of special steel material, pin and bush go through special heat treatment, so the wear-resistance is improved to maximum extent. Chain inside is spread with lubrication oil and equipped with polyurethane dust seal and further prolong life time;

All chains are assembled with the high precision design and manufacturing parts.

We can supply more products as your reuirement,please kindly send us your inquiry here.

PART NOS	BERCO NOS	MODEL	LINK NOS	PITCH	BOLT	M/P
BD2G/42	MT24/42		28697	135	12	SML
6Y1713	CR4749/39	D3C 39L	28494	155	9/16″	LUB
6Y1510	CR4746/39	D3C 39L	28494	155	9/16″	M/P
7K2049	CR2567/36	D4D	28296	171	9/16″	M/P
7K2372	CR2567/40	D4D	28296	171	9/16″	M/P
6T0511	CR4858/51,CR3817/	D4D/215D 53.8 DIA	28296	171	5/8″	SML
1V7072	CR3628/36	D4E	28296	171	5/8″	LUB
1V4602/29	CR3519/29	D4E 29L	28296	171	16	LUB
1V4602	CR3519/35	D4E 35L	28296	171	16	LUB
1543656	CR3519/36	D4E 36L	28296	171	16	LUB
1543657	CR3519/40	D4E 40L	28296	171	16	LUB
7T4629	CR4261/38	943 38L, D4E EWL	28284	171	16	M/P
5S0816	CR2823/39,CR5035/	D5, 225	28294	175	16	M/P
5A5293	CR2823/46,CR5035/	D5, 225	28294	175	16	LUB
3P3885	CR3520/39	D5B 39L	28294	175	16	LUB
3P3887	CR3520/46	D5B 46L	28294	175	16	LUB
7T4637	CR4264/40	953 D5B EWL	28293	175	16	LUB
6Y5407	CR5192/39	D4H 39L	28287	171	16	LUB
6Y5410	CR5192/44	D4H 44L,D41P-6	28287	171	16	LUB
1080953	CR5552/39	D4H HD 39L	28286	171	16	LUB
1080955	CR5552/41	D4H HD 41L	28286	171	16	LUB
1080954	CR5552/44	D4H HD 44L	28286	171	16	LUB
6Y5412	CR5202/37	D5H 37L	28096	190	16	LUB
6Y5414	CR5202/46	D5H 46L	28096	190	16	LUB
8E4160	CR5202/47	D5H 47L	28096	190	16	LUB
1061635	CR5465/37	D5H HD 37L	28094	190	20	LUB
1102976	CR5465/40	D5H HD 40L	28094	190	20	LUB
1061636	CR5465/46	D5H HD 46L	28094	190	20	LUB
1061634	CR5465/47	D5H HD 47L, D6M	28094	190	20	LUB
9W8843	CR4267/36	D6D EWL,963	27985	203	19	M/P
6P6131	CR3176/36,CR5059/	D6C,225,229	27997	203	19	SML
3P1088	CR3307/36	D6D 36L	27997	203	19	LUB
3P1118	CR3309/36	D6D 36L	27997	203	19	LUB
3P1120	CR3309/39	D6D 39L	27997	203	19	LUB
6Y5417	CR4810A/40 CR6587	D6H 40L	27995	203	19	LUB
8E4328	CR4810A/45 CR6587	D6H 45L	27995	203	19	LUB
6I9670	CR5534/40	D6R 40L	27994	203	19	LUB
6I9671	CR5534/41	D6R 41L	27994	203	19	LUB
8E9037	CR5534/45	D6R 45L	27994	203	19	M/P
1S6943	CR1769/41	D7, 977K	27996	203	19	M/P
8S2607	CR2567/38,CR5061	D7G ,235B	27895	216	19	SML
3P0955	CR3308/38	D7G 38L	27895	216	19	LUB
3P0629	CR3116/38	D7G 38L	27895	216	19	LUB
7T4663	CR4268/40	973, D7G EWL	27878	216	19	LUB
9W9167	CR4700/40	973, D7G EWL	27878	216	7/8″	LUB
6Y1141	CR5069/40	D7H 40L	27892	216	19	LUB
6Y1138	CR5069/41	D7H 41L	27892	216	19	LUB
6Y1139	CR5069/43	D7H 43L	27892	216	19	LUB
1156301	CR5574/40	D7H HD D7R	27881	216	7/8″	LUB
1156303	CR5574/41	D7H HD D7R	27881	216	7/8″	LUB
1156302	CR5574/43	D7H HD D7R	27881	216	7/8″	SML
8S0396	CR2701/41	D8K 41L	27798	228	7/8″	LUB
2P9492	CR3149/41	D8K 41L	27798	228	7/8″	LUB
8E4518	CR4525/44	D8R 44L	27897	216	7/8″	SML
8S1731	CR2672/39	D9H 39L	27398	260	1″	LUB
2P9426	CR3153/39	D9H 39L	27398	260	1″	LUB
6Y1130	CR4653/43	D9R 43L NON PPR	27598	240	1″	LUB
1995525	CR6479/43	D9R 43L PPR	27598	240	1″	LUB
2389851		D10R 44L PPR	27397	260	1-1/8″	LUB
2389851	CR6075/44	D10R 44L PPR	27397	260	1-1/8″	M/P
102-32-00032	KM906/37	D20-6,7 PC60-5 75mm	28698	135	12	M/P
D20/48(PC60-5)		D20HD 80mm	28696	135	12	M/P
D20/44(PC60-5)		D20HD 83mm	28695	135	12	M/P
11G-A70-0014	KM728/41	D31P-18	28496	6	14	LUB
11G-32-00025	KM727/41	D31P-18,20	28496	154	14	LUB
13G-32-00020	KM2868/46	D61X-12 46L	28092	190	20	M/P
141-32-00045	KM953/39	D65-8 39L	27990	203	19	M/P
144-820-0024	KM953/44	D65-8 44L	27990	203	19	SML
	KM952/39	D65-8 39L	27990	203	19	LUB
144-32-00054	KM951/37	D65 37L	27990	203	19	LUB
141-32-00065	KM951/39	D65 39L	27990	203	19	LUB
141-32-00065HD		D65 39L(HD)	27988	203	19	LUB
14Y-32-00110	KM3467/45	D65PX-15 45L	27984	203	20	LUB
14U-32-00010	KM2094/42	D85SS-2 42L	27988	203	20	LUB
14X-32-00010	KM2094/39	D85SS-2 39L	27988	203	20	LUB
134-32-00142	KM2094/41	D85SS-2 41L	27988	203	20
14Y-32-00021	KM2094/45	D65PX-12 45L	27988			M/P
154-32-00400	KM1103/39	D85-21 39L	27884	216	20	LUB
154-32-00301	KM1099/39	D85-21 39L	27884	216	29	LUB
154-32-00620	KM3904/41	D85EX-15 41L	27879	216	22	M/P
175-32-00103	KM325/41	D155 41L	27794	228	24	SML
175-32-00152	KM495/41	D155 41L	27794	228	24	LUB
175-32-00120	KM425/41	D155 41L	27794	228	24	LUB
175-32-00403	KM1267/41	D155-2 41L	27791	228	24	SML
175-32-00411	KM1270/41	D155-2 41L	27791	228	24	M/P
	KM2661/41	D155-2 41L	27791	228	24	LUB
17M-32-00400	KM3593/39	D275A-5 39L	27393	260	27	M/P
195-32-00105	KM596/39	D355A-5 39L	27396	260	27	M/P
196-32-00017	KM596/42	D355C-5 42L	27396	260	27	SML
195-32-00114	KM649/39	D355A-5 39L	27396	260	27	LUB
195-32-00170	KM426A/39	D355A-3 39L	27396	260	27	LUB
195-32-00591	KM3599A/40	D375A-5 40L	27198	280	30	SML
743375C91	IN3252/39	TD15C	28091	190	19	LUB
743376C91	IN3251/39	TD15C	28091	190	19	SML
1212335H91	IN3411/39	TD15E	27983	203	19	LUB
1212336H91	IN3421/39	TD15E	27983	203	19	SML
	IN3254/40	TD20E,G	27876	216	19	LUB
1251943H92	IN3253/40	TD20E,G	27876	216	19	SML
617089C93	IN3256/38	TD25G	27498	250	7/8″	LUB
739405C91	IN3255/38	TD25G	27498	250	7/8″	GREASED
		EX40	28694	135	12	GREASED
	HT418/37	EX60-3 37L	28495	154	16	GREASED
CR4854/41	CR4854/41	EX120 41L , B4	28295	171	16	GREASED
CR4854/43	CR4854/43	EX120 43L	28295	171	16	GREASED
	CR4854/44	EX120 44L	28295	171	16	GREASED
9093032	HT420/47	EX100M	28288	171	16	GREASED
HT17/48	HT17/48	EX200-1 48L	28294	175	18	GREASED
HT17/49	HT17/49	EX200-1 49L	28294	175	18	GREASED
HT17/52	HT17/52	EX200-1 52L	28294	175	18	GREASED
206-32-00015	KM1170/46,ID1690/	EX200-5 46L	28098	190	18	GREASED
KM959/47	KM959/47	EX300 47L	27993	203	20	GREASED
KM959/50	KM959/50	EX300 50L EC290	27993	203	20	GREASED
KM959/51	KM959/51	EX300 51L	27993	203	20	GREASED
9084353	MT14/49	EX400-1 49L EC360	27884	216	7/8″	GREASED
9084356	MT14/53	EX400-1 53L EC360	27884	216	7/8″	GREASED
9133225	HT227/49	EX400-5 49L	27884	216	24	GREASED
9129617	HT227/53	EX400-5-53L	27884	216	24	GREASED
201-32-00300	KM3041/38	PC60-6,7 SK60	28497	154	14	GREASED
202-32-00131	KM965/46	PC100-3 46L	28496	154	14	GREASED
203-32-00102	KM1262/42	PC100-6 42L	28291	175	16	GREASED
20Y-32-00013	KM782/45,KM2561	PC200-7 45L, R210-3	28098	190	20	GREASED
20Y-32-00013	ID1692/	PC200-7 45L, R210-3	28098	190	20	GREASED
20Y-32-00320	KM782/47,KM2561	PC200-7 47L EC210	28098	190	20	GREASED
20Y-32-00320	ID1692/	PC200-7 47L EC210	28098	190	20	GREASED
20Y-32-00310	KM782/49,KM2561	PC200-7 49L EC210	28098	190	20	GREASED
20Y-32-00310	ID1692/	PC200-7 49L EC210	28098	190	20	GREASED
206-32-00114	KM782/51,KM2561	PC200-7 51L EC210	28098	190	20	GREASED
206-32-00114	ID1692/	PC200-7 51L EC210	28098	190	20	GREASED
207-32-00101	KM1617/47	PC300-5 47L	27993	203	22	GREASED
207-32-00300	KM2233/45	PC300-6 45L	27889	216	22	GREASED
207-32-00310	KM2233/48	PC300-6 48L	27889	216	22	GREASED
208-32-00102	KM1402/49	PC400-5 49L	27884	216	24	GREASED
208-32-00340	KM1402/53	PC400-5 53L	27884	216	24	GREASED
208-32-00300	KM2489/46	PC400-6 46L	27793	228	24	GREASED
208-32-00310	KM2489/49	PC400-6 49L	27793	228	24	GREASED
21M-32-00100	KM3057/49	PC600-7 49L	27792	228	24	GREASED
21M-32-00200	KM3057/52	PC600-7 52L	27792	228	24	GREASED
209-32-00022	KM596/47	PC650 47L	27396	260	27	GREASED/PPR
209-32-00110	KM596/51	PC650 51L	27396	260	27	GREASED
21N-30-00121	KM2346/48	PC1250-7 48L PPR	27197	280	33	GREASED
9W9354	CR5350/45,CR6003/	CAT320, SK200-5 45L	28097	190	20	GREASED
965279	CR5350/46,CR6003/	CAT320,SK200-8 46L	28097	190	20	GREASED
6Y2754	CR5926/49	CAT330, SK330 49L	27896	216	22	GREASED
6Y0854	CR5489/45	CAT325 45L	27998	203	20	GREASED
6Y0853	CR5489/48	CAT325 48L	27998	203	20	GREASED
2520617	CR6594/49	CAT345 49L EC460	27884	216	24	GREASED
2520618	CR6594/52	CAT345 52L EC460	27884	216	24	GREASED
	CR2006/48	K907B 48L	28285	171	16	GREASED
24100J12245F4		SK100-3, SK120	28292	171	16	GREASED
24100J10382F4		SK300-3	27993	203	20	GREASED
LS62D00003F2	SI1057/50	SK450-6,460-6,480-6	27795	228	24	GREASED
580373	FT1351B/35	FL4	28598	140	12	GREASED
