Excavator correct operation (1): How to support the uphill?

13 Oct, 2018

Do you know the correct uphill posture? What are the main steps for going uphill? What are the precautions? Here is the answer for everyone.

The excavator's uphill work can be divided into the following nine steps:

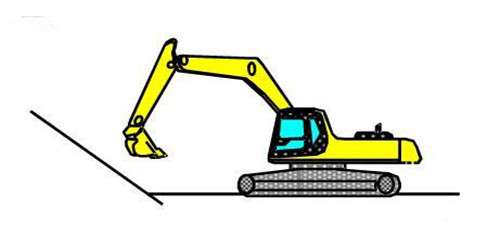

The first step: the excavator prepares for the slope in advance. (Climb up the pedal with your foot up, and your hands cannot leave the work unit lever.)

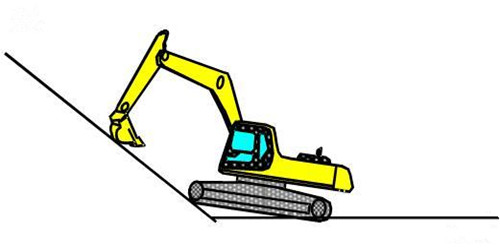

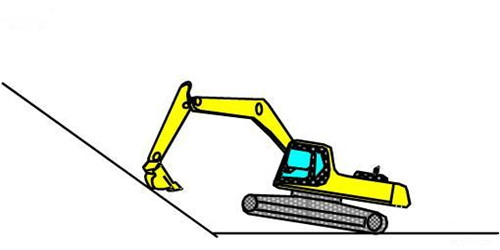

Step 2: As shown in the figure, the excavator's bucket supports the front of the track.


Step 3: The front of the track of the excavator is climbed up by controlling the walking and the boom device.

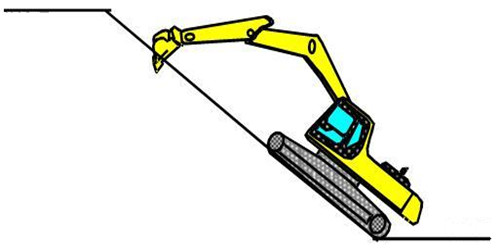

Step 4: By walking uphill, note that the boom is extended to the maximum extended position and the tip of the tooth is inserted into the soil.

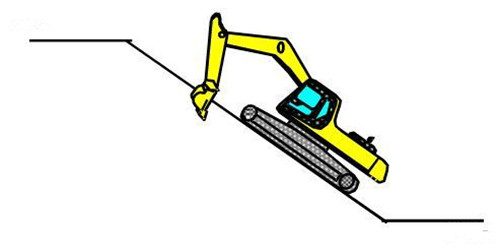

Step 5: Walk + arm excavation + boom to go uphill.

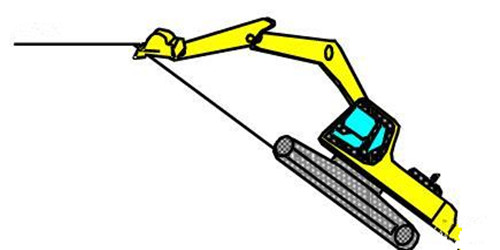

Step 6: Once again, the boom is extended to the maximum extended position and the tip of the tooth is inserted into the road.


Step 7: Repeat step 5.

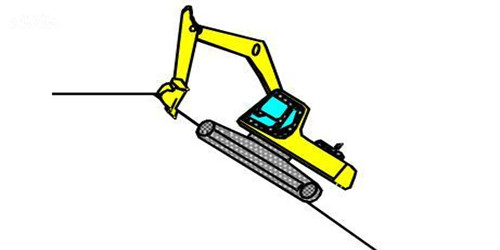

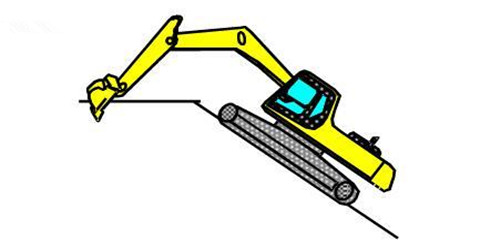

Step 8: Until the end of the slope, the tip of the tooth is inserted into the road as before.

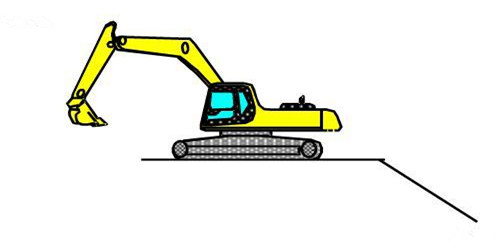

Step 9: Slowly climb up the top, and finally end up as shown.

The above is just a relatively graphic display of the process of supporting the uphill work, of course, there will be a gap with the actual work. Finally, we must remind you that if you want to carry out the uphill operation according to the actual situation, you must measure the slope and the specific environment around the slope in advance. If there is snow, you can't do this work. You must also ensure that the track can't slip, fasten the seat belt and clear it. Stone and so on.
