How many blades do you have on a bulldozer?

20 Sep, 2018

The dozer blade is the most important working device on the bulldozer. Many people mistakenly believe that it is not a blade. What is the technical content? In fact, there are many kinds of dozer blades, and there are so many scholars inside.

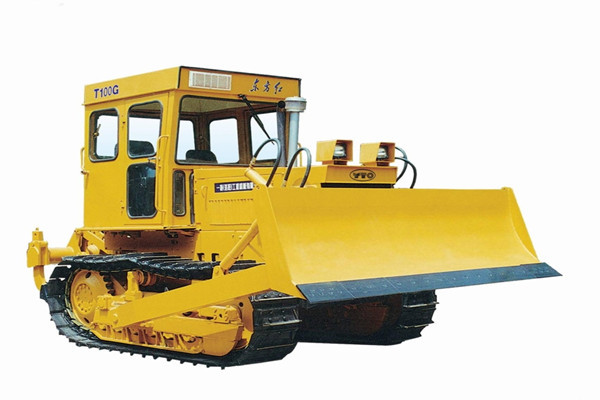

1.Our common bulldozer blade has a small arc and side plates. This is called a S Blade. This blade can adjust the up and down and tilt angles, with good flexibility, greater penetration and peace. Suitable for hard materials such as sand and hard soil.

bulldozer S Blade

2.This type of blade is called the U Blade and has a large arc and side plates for easy material retention and higher productivity. Suitable for loose and low-density materials, it can be used for light-loading large earthwork and long-distance dozing operations.

bulldozer U Blade

3.The blade has a larger curvature and side plates than the straight shovel, but smaller than the U-shovel. This type of bucket is called a semi-U-shovel. It combines the cutting/leveling ability of the straight-shovel and the large earth-moving capacity of the U-shovel. It is suitable for the operation of various working conditions.

bulldozer semi-U-shovel

4.This type of blade is called the A Blade. It has two positions of 0-25 degrees in the front and rear direction. It has a good angle of cutting ability and is suitable for trimming and final leveling.

bulldozer A Blade

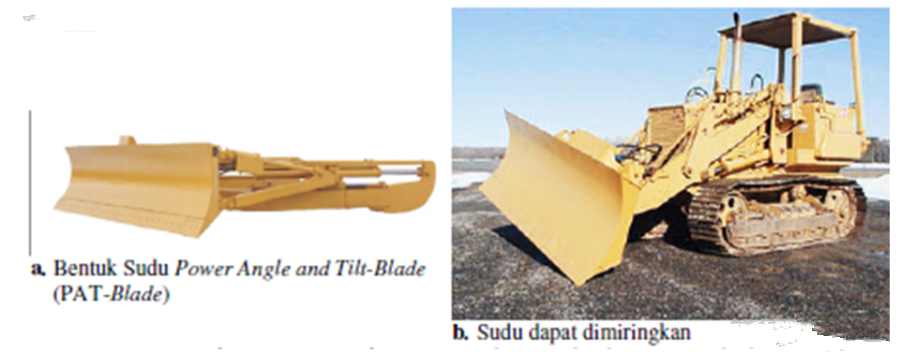

5.This blade is called the PAT Blade and provides continuous adjustment of 0-25 degrees of front and rear direction for excellent versatility and good angle cut-in capability. It is suitable for trimming slope, static leveling and other work to meet different working conditions and application requirements.

bulldozer PAT Blade
